Duo Cone Seals, also known as mechanical face seals or floating seals, are critical components in heavy-duty machinery, offering superior sealing performance in demanding environments. Whether you're in construction, mining, or agriculture, understanding Duo Cone Seals can help you choose the right sealing solution for your equipment. In this guide, we'll explore what Duo Cone Seals are, how they work, their advantages, applications, and everything you need to know about installation, maintenance, and purchasing. Let's dive in!

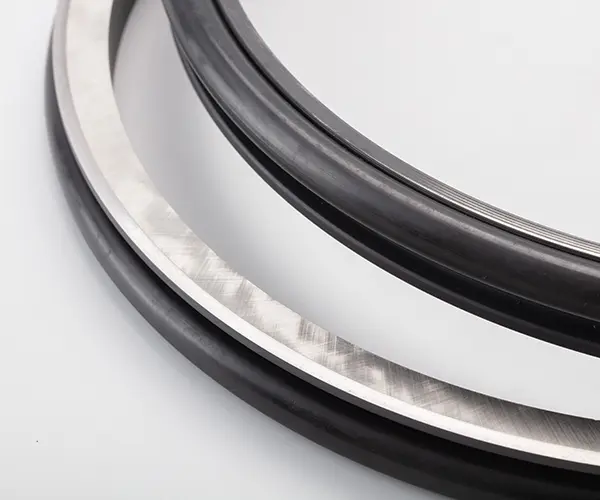

A Duo Cone Seal is a type of mechanical face seal designed to provide a robust sealing solution in extreme conditions. It consists of two metal seal rings and two elastomeric O-rings, working together to create a leak-proof barrier. The metal rings are precision-lapped to form a sealing face, while the O-rings provide the necessary compressive force to maintain contact between the seal faces. This design ensures that the seal retains lubricants (like oil) inside the system while keeping out contaminants such as dust, dirt, and water.
Duo Cone Seals, also known as mechanical face seals or floating seals, were originally developed by Caterpillar to solve sealing challenges in harsh environments. While the exact invention date isn't clear, a 1976 patent (US3985366A) shows they were already in use by the mid-1970s.
Given Caterpillar's innovation in heavy machinery since the 1920s and the post-WWII boom in construction equipment, it's likely Duo Cone Seals were developed in the 1950s or 1960s. Their design—featuring two metal seal rings and elastomeric O-rings—was ideal for retaining lubricant and blocking contaminants in demanding conditions.
Now widely used by OEMs, some applications report over 30,000 hours of operation without maintenance, confirming the technology's maturity by the late 20th century.
Duo Cone Seals offer several advantages over traditional O-rings and lip seals, making them ideal for heavy-duty applications:
Superior Durability: Unlike O-rings, which can degrade under high pressure or temperature, Duo Cone Seals are designed for extreme conditions, with wear-resistant metal faces that last longer.
Better Contaminant Resistance: Lip seals often fail in abrasive environments due to their softer materials, but Duo Cone Seals use hard metal faces to block dust, dirt, and water effectively.
Maintenance-Free Operation: While O-rings and lip seals may require frequent replacement, Duo Cone Seals are designed for long service life with minimal maintenance.
High-Speed Capability: The oil film in Duo Cone Seals enables smooth operation at higher rotational speeds, unlike lip seals which are more prone to overheating under similar conditions.
Self-Adjusting Design: The O-rings in Duo Cone Seals compensate for wear, misalignment, and vibrations, ensuring consistent sealing performance—something O-rings and lip seals struggle with in dynamic applications.
Duo Cone Seals operate on a dynamic sealing principle. The two metal seal rings are mounted face-to-face in separate housings—one ring remains stationary (static ring), while the other rotates with the shaft (dynamic ring). The O-rings apply axial pressure to keep the seal faces in contact, forming a thin oil film between them. This oil film acts as a lubricant, reducing friction, and creates a suction effect that prevents external contaminants from entering while retaining internal lubricants. As the seal wears over time, the O-rings provide elastic compensation, maintaining sealing performance.
Duo Cone Seals are constructed from two primary components:
Metal Seal Rings: Typically made from high-grade materials like high chromium molybdenum alloy (e.g., FC15Cr3Mo), which offers excellent wear and corrosion resistance. These rings are often treated with techniques like electrochemical corrosion passivation to enhance durability.
Elastomeric O-Rings: Made from synthetic rubbers such as nitrile rubber (NBR), hydrogenated nitrile rubber (HNBR), or silicone rubber. The material is selected based on the operating environment, with NBR commonly used for general applications and HNBR or silicone rubber preferred for higher temperature or more demanding conditions.
The sealing surface of a Duo Cone Seal is precision-engineered for optimal performance. The metal seal rings are lapped to a roughness of ≤ Ra0.2μm, ensuring a smooth, flat surface that forms a tight oil film with the opposing ring. Some designs include cross-hatched grooves on the contact band to improve oil flow and heat dissipation, enabling the seal to operate in high-speed and high-temperature conditions. The O-rings are designed with sufficient pre-compression to maintain contact and self-adjust as the seal wears, ensuring long-term sealing efficacy.
Duo Cone Seals are widely used in industries that require reliable sealing in harsh environments:
Construction: For equipment like excavators, bulldozers, and concrete mixers.
Mining: In mining machinery such as conveyors, crushers, and off-road vehicles.
Agriculture: For tractors, harvesters, and other agricultural machinery.
Oil and Gas: In drilling equipment and subsea applications.
Heavy-Duty Vehicles: In tracked vehicles and tunnel boring machines.
Duo Cone Seals are ideal for equipment operating under heavy loads, abrasive conditions, and extreme environments, including:
Construction Equipment: Excavators, bulldozers, articulated dump trucks, tunnel boring machines (including cutter heads), double wheel trench cutters, twin shaft concrete mixers, milling machines, crawler crane winches, and cutter suction dredgers, particularly in undercarriage and rotating components.
Mining Machinery: Coal mining machines, mining scraper chain conveyors, sprocket wheels, shuttle cars, underground mining trucks, boom-type road headers, continuous mining machines, bucket wheel excavators, mining trucks, and wet braking systems, designed for rugged mining operations.
Agricultural Machinery: Combine harvesters, tractors, and other farm equipment, where seals protect against soil, dust, and moisture during fieldwork.
Heavy-Duty Vehicles: Tracked vehicles (e.g., military and construction), articulated dump trucks, steering drive axles, and travel reduction gears, built for high-load and off-road conditions.
Specialized Equipment: Tunnel boring machines, sludge thickening centrifuges, gearboxes, planetary reducers, and bearing systems, ensuring longevity in high-pressure and abrasive applications.
High Temperature: Designed to perform reliably in elevated temperatures, depending on the O-ring material used.
High Pressure: Built to maintain sealing performance under demanding load conditions, making them suitable for heavy-duty use.
High-Speed Rotation: The oil film between sealing faces ensures stable operation during continuous rotation.
Abrasive Environments: The durable metal sealing faces and robust O-rings provide excellent resistance against dust, dirt, sand, and other abrasive media.
Proper installation is critical to ensure the longevity of a Duo Cone Seal:
Prepare the Housing: Clean the housing and seal components using a lint-free wipe and a non-petroleum-based solvent (e.g., isopropyl alcohol).
Install the O-Rings: Place the O-rings on the metal seal rings, ensuring they sit at the bottom of the seal ring ramp without twisting.
Use an Installation Tool: Use a specialized Duo Cone Seal installation tool to apply even pressure, preventing damage to the O-rings. For smaller seals, this can be done manually; for larger seals, use a wooden mallet to apply gentle, even pressure.
Check Alignment: Ensure the seal is properly aligned in the housing to avoid uneven loading, which can lead to premature failure.
The service life of a Duo Cone Seal depends on operating conditions, maintenance practices, and material quality. Under normal conditions, a high-quality Duo Cone Seal can last several years without maintenance, thanks to its wear-resistant metal faces and self-adjusting O-rings. In harsh environments (e.g., mining or construction), the seal may last 2-5 years, provided it's properly installed and maintained. Regular cleaning of the equipment undercarriage can further extend its lifespan by preventing debris buildup.
Signs that a Duo Cone Seal needs replacement include:
Oil Leaks: Gear oil leaking behind the sprocket or frequent need to top off oil indicates a failing seal.
Contaminant Ingress: Debris or sludge in the gear oil suggests the seal is no longer blocking contaminants.
Visible Damage: Cracks, wear, or shredding of the O-ring, or excessive wear on the metal seal faces, are clear indicators.
Reduced Performance: Increased downtime or equipment failure due to lubrication loss.
To maximize the lifespan of a Duo Cone Seal:
Regular Cleaning: Use a pressure washer to clean the equipment undercarriage, removing debris that can displace the seal.
Proper Storage: Store seals in a cool, dark place to prevent O-ring degradation from heat or UV exposure.
Lubrication: Ensure the seal is lubricated with oil (not grease) at the sealing gaps to reduce friction and wear.
Periodic Inspections: Check for signs of wear, oil leaks, or contaminant ingress during routine maintenance.
Duo Cone Seals are highly resistant to wear and corrosion:
Wear Resistance: The metal seal rings, often made from high chromium molybdenum alloy, are precision-lapped and treated to withstand abrasive media like sand or mud.
Corrosion Resistance: The metal components are treated to resist corrosion from moisture, chemicals, and saltwater, making them suitable for marine and oil/gas applications.
O-Ring Durability: High-quality O-rings made from materials such as HNBR or silicone rubber offer excellent resistance to aging, cracking, and deformation, ensuring long-term sealing performance.
Duo Cone Seals must withstand a variety of harsh conditions to ensure reliable performance:
Abrasive Media: Sand, dust, and dirt, common in construction and mining environments.
Moisture and Water: To prevent rust and lubricant leakage, especially in marine or wet conditions.
Chemicals: Fuels, oils, and corrosive fluids in oil/gas or industrial applications.
Temperature Extremes: Both high and low temperatures, depending on the operating environment.
UV and Ozone: For outdoor applications, the O-rings must resist degradation from sunlight and ozone exposure.
Selecting the right size of Duo Cone Seal is critical for effective sealing:
Match the Equipment Specifications: Check the housing dimensions and shaft size of your equipment to ensure compatibility.
Consider the O-Ring Size: The O-ring must fit snugly on the metal seal ring without being too loose (causing sliding) or too tight (causing insufficient compression).
Account for Operating Conditions: Larger seals may be needed for high-speed or high-pressure applications to ensure stability.
Consult Manufacturer Guidelines: Reputable suppliers provide size charts and catalogs to help you choose.
Check out more: How to Choose The Right Sizes of Duo Cone Seals?
Yes, Duo Cone Seals can be customized to meet specific requirements:
Size Customization: Suppliers can manufacture seals in a wide range of diameters (e.g., 35mm to 1425mm) to fit your equipment.
Material Customization: Choose O-ring materials (e.g., NBR, HNBR, silicone) and metal alloys based on your operating conditions.
Design Customization: Fuyote offers custom features like anti-skid stripes or cross-hatched grooves for enhanced performance.
Operating Conditions: Assess temperature, pressure, speed, and environmental factors (e.g., abrasives, chemicals) to choose the right material and design.
Equipment Compatibility: Ensure the seal size and type match your machinery's specifications.
Cost vs. Quality: While cost is important, prioritize quality to avoid frequent replacements and downtime.
Supplier Reliability: Choose a supplier with a proven track record, quality certifications, and good customer support.
Maintenance Requirements: Opt for seals that are maintenance-free or easy to maintain to reduce operational costs.
As a leading manufacturer and supplier of Duo Cone Seals, we at FUYOTE are proud to offer high-quality sealing solutions for heavy-duty machinery worldwide. With over 30 years of specialized experience, we provide an extensive range of sizes, complementary installation tools, and custom options to meet your specific needs. Based in China, our 8,000-square-meter facility ensures large-scale production with strict quality control, making us a trusted partner for industries like construction, mining, and agriculture. Check out the details of our duo cone seal sizes, explore our full catalog and discover how FUYOTE can meet your sealing needs.
Extensive Range of Duo Cone Seal Sizes
We offer Duo Cone Seals in a wide range of sizes, with outer diameters from 35mm to 1425mm, ensuring compatibility with diverse machinery applications. Whether you need seals for compact agricultural equipment or large-scale mining machinery like coal-winning machines and mining trucks, we have the right solution for you. Our seals are crafted from high-alloy cast iron for the metal rings, paired with O-rings in materials like NBR, HNBR, or silicone, designed to perform in various operating conditions. This extensive size range and material selection make us a go-to supplier for your sealing needs.
Specialized Installation Tools for Precision
We understand that proper installation is key to maximizing the performance and lifespan of Duo Cone Seals, which is why we provide specialized installation tools to ensure a seamless process. Our tools, available for seals up to 1,105mm in diameter, are designed to apply even pressure and prevent O-ring twisting, which can lead to uneven stress and early failure. We recommend installing seals in a dust-free environment and using our tools to avoid damage to the metal rings or O-rings. With our installation tools, you can achieve precise, efficient, and safe installation, ensuring your seals perform reliably in the toughest conditions.
Customizable Duo Cone Seals Tailored to Your Needs
At FUYOTE, we know that every application is unique, so we offer customizable Duo Cone Seals tailored to your specific requirements. You can customize the size, material composition, and sealing pressure to match your equipment's operating conditions, whether it's for a tunnel boring machine, a tracked vehicle, or an agricultural harvester. Our seals feature innovative designs like cross-hatched grooves on the contact bands for better oil flow and heat management, and options like black seal faces or anti-skid stripes to enhance O-ring grip and reduce rusting. With us, you get a sealing solution that's perfectly suited to your needs, ensuring optimal performance and longevity.
